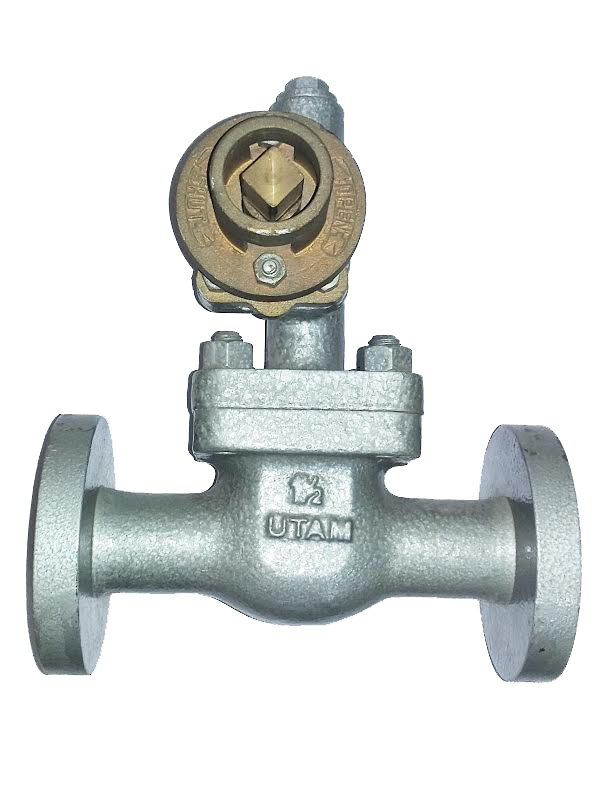

• Rack and Pinion Operated with Key.
• Renewable Seat.
• Renewable Disc

• Oil, Water, Steam

• ASME VIII Sec.-1
• IBR-1950
• API 520
• API 526
• API 527

The Trap should be installed horizontally with flow direction as indicated on the valve . the trap should be below the drainage point of the equipment. Float always rises & falls vertically in horizontal plane. For correct working of trap, the arrow on the name plate should be indicating in vertically downwards direction.
