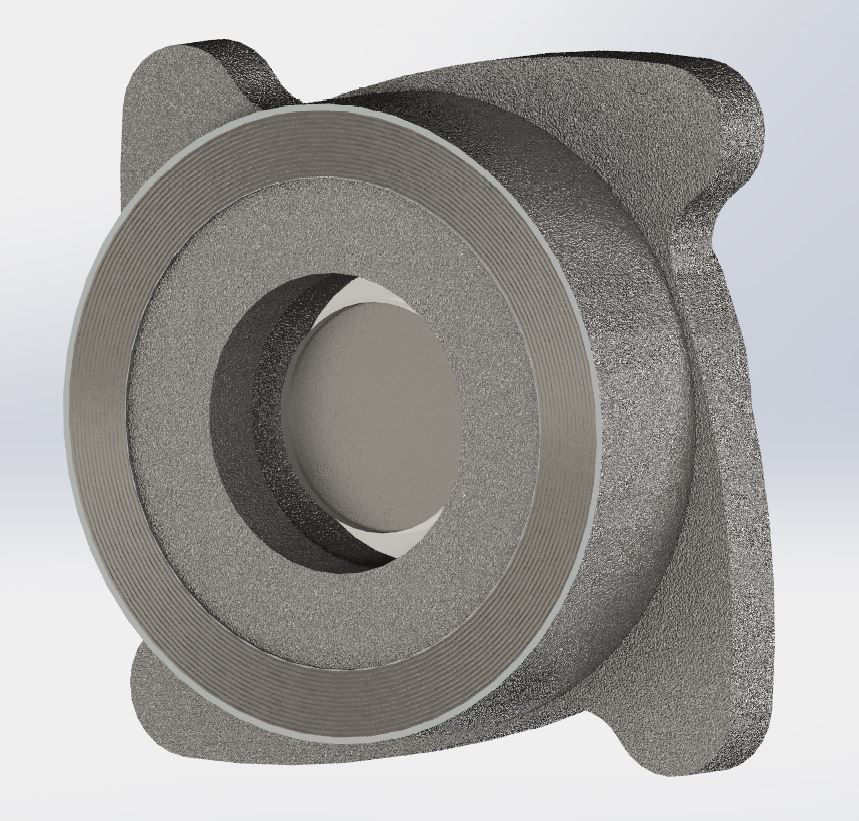

• Wafer pattern designed to be sandwiched between flanges.
• Full bore for good flow characteristics.
• Suitable for wide range of fluids for application in process lines.
• Tight shutoff-lapped disc & seat
• Horizontal or vertical installation
• Easy maintenance
• Stainless steel construction

• Steam
• Hot water
• Condensate System
• AIR
• Process line fluid

• BS-7438

The Trap should be installed horizontally with flow direction as indicated on the valve . the trap should be below the drainage point of the equipment. Float always rises & falls vertically in horizontal plane. For correct working of trap, the arrow on the name plate should be indicating in vertically downwards direction.
