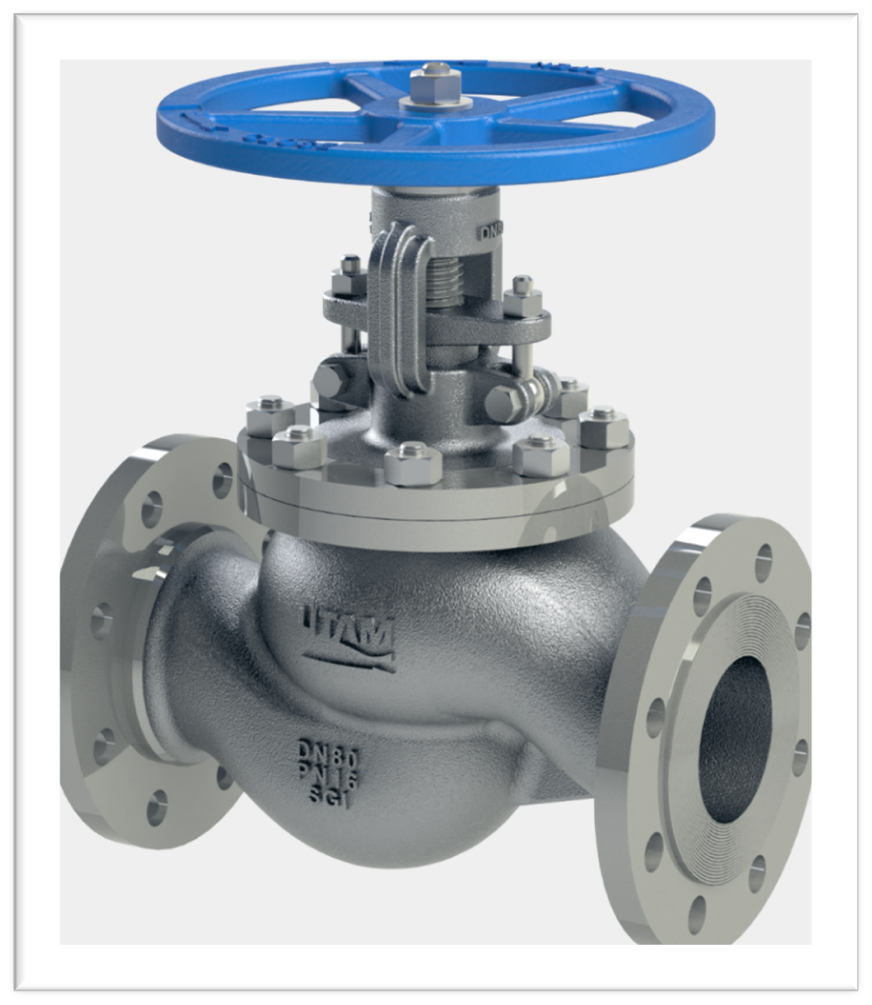

Globe Valve - UV-201 / UV-251 / UV-270 /UV-271 / UV-352

Size Range

DN15 to DN300

Temp. Range

-29 to 425°C
isolation-globe-valve-uv-201
Technical Data
Size

DN15 to DN300

Temperature Range

-29°C to 425°C [ASTM A216 Gr. WCB]

Body Style

Flanged / Screwed / Socket Welded

Operator

Handwheel

Shut off Class
PN16 / PN40 / #150 / #300 / #800 / #1500 / #2500

EN 12266-1-Rate A

Material of construction
Body

ASTM A536/ 5.3103 / ASTM A216 Gr. WCB / ASTM A351 CF8M / ASTM A105

Trim

Trim 8

Seal

Graphite

Design Standard & Approval
Valve Design

API 623/BS 1873 / API 602

Face to Face

ASME B16.10 / BS EN 558-1

Pressure Testing

API 598/EN 12266-1

Accreditations
IBR / CE Marking
Approvals

PED Approved.

Add Your Heading Text Here
isolation-globe-valve-uv-201

Add Your Heading Text Here

Benefits of the Product

  1. Product benefit one test
  2. Product benefit two
  3. Product benefit three
  4. Product benefit four
Certifications / Approvals
