• Integral Fine Stainless Steel Mesh filter
• No contact b/w spring& water,which increase the spring life
• The outlet pressure can be easily set by rotating the adjusting knob
• Inlet fluctuating pressure dose not affect. the outlet pressure.
• Excellent controllability.
• Easy installation & maintenance.
• Light in construction

• Water

• High quality synthetic fibre(N-6) material bonnet & bowl
• Bronze body with female screwed end
• Fiber reinforced NBR diaphragm
• Stainless steel fine filter with 0.20mm mesh
• High quality synthetic(N-6) material valve trims

• BS EN 1567
• Bronze ASTM 862/Brass

Always install the PRV with the flow direction arrow (on the body) pointing downstream.

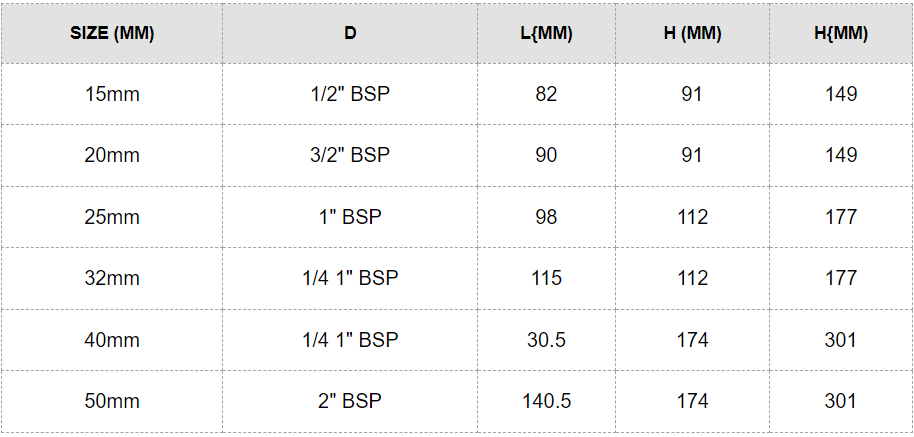

• The pressure reducing valve is available as follows:
• Screwed Yz”, %”, 1″, lW’, lYz”, 2″, BSP .
• The UTAM VALVES pressure reducing valve should always be fitted in a horizontal pipeline. The adjustment head may be above or below the valve. It is important that line stresses, caused by expansion or inadequate pipe support, are not imposed on the valve body.
