DESCRIPTION

• Ideally suited to the meticulous demands of any steam system.
• Corrosion resistant air vent & steam lock release system.
• Self aligning main valve and water hammer proof.
• No live steam loss because of self aligning and water seal.
• Variable valve orifice mechanism for a complete immediate condensate
         removal at all positive pressure difference.
• Integral air vent and SLR system for maximum air venting without any steam loss
• Strong stainless steam constructed float , capable to bear any type of water hammering
• Asbestos free graphite gasket.

SIZE

APPLICATION

• Steam Separator drainage
• Steam Unit Heater
• Steam Main Drip
• Air Handling Coil
• Heat Exchanger

DESIGN STANDARD

• ISO 6552
• ISO 6704
• ISO 6948
• ISO 7841
• ISO 7842

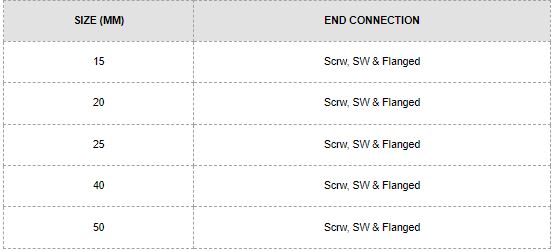

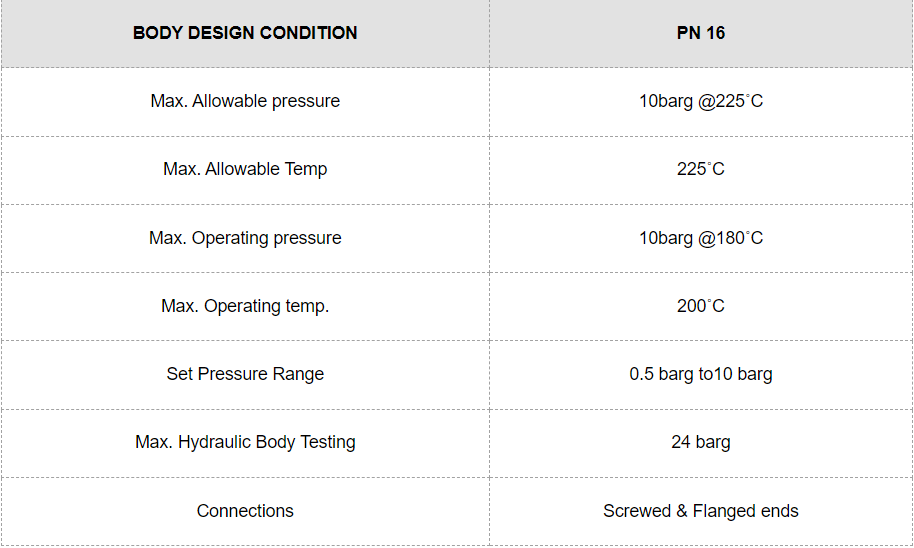

TECHNICAL DATA

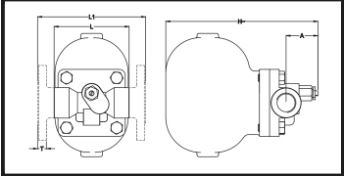

DRAWING

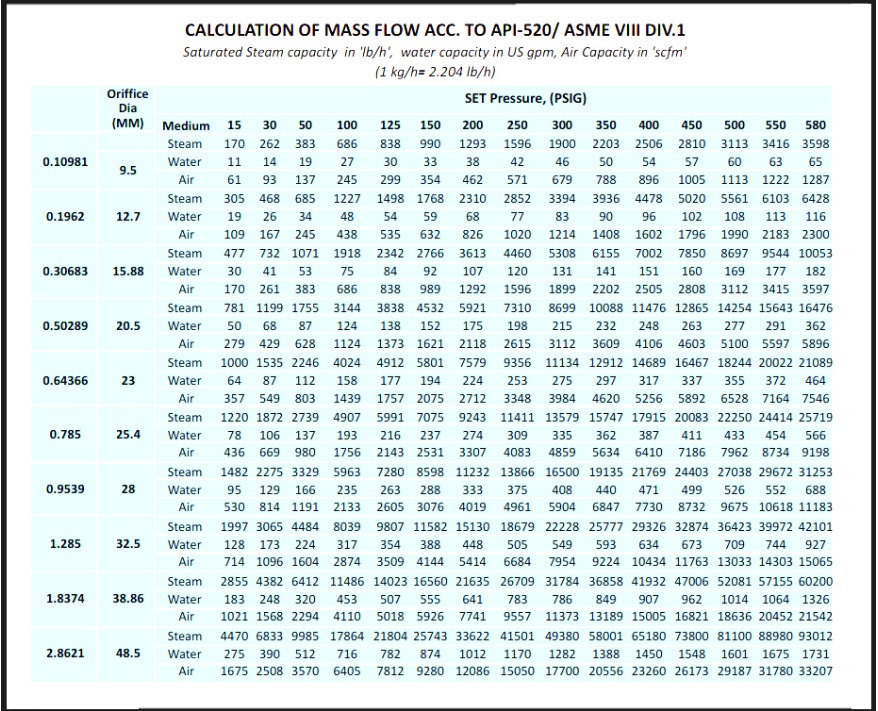

DISCHARGE CAPACITY CHART

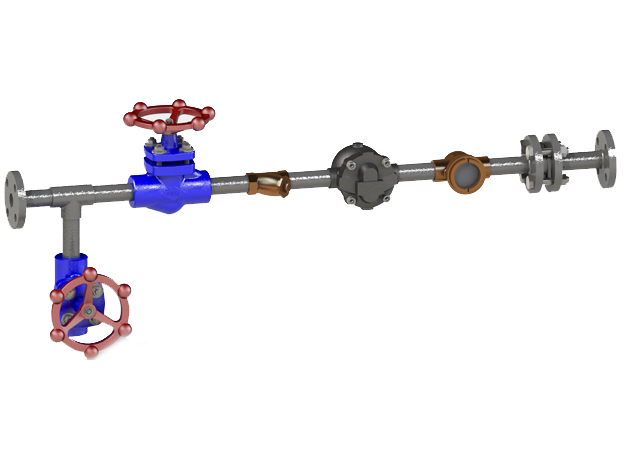

INSTALLATION

The Trap should be installed horizontally with flow direction as indicated on the valve. the trap should be below the drainage point of the equipment. Float always rises & falls vertically in horizontal plane. For correct working of trap, the arrow on the name plate should be indicating in vertically downwards direction.
